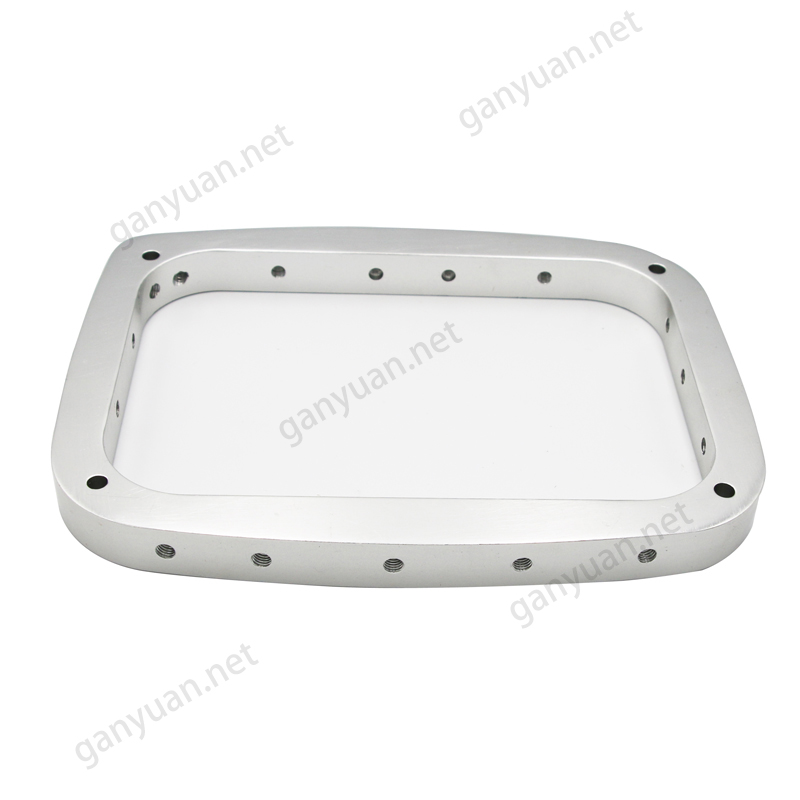

Aluminum frame Trustworthy CNC cutting and processing automated equipment structural frame

We specialize in high-precision CNC machining and manufacturing of various precision aluminum frames. Leveraging advanced multi-axis CNC equipment and professional structural design capabilities, we ensure that each frame achieves superior lightweight strength, precise dimensional fit, and excellent structural stability, providing modular, high-rigidity structural solutions for automated equipment, testing fixtures, instruments, and high-end electronic devices.

Aluminum frame Trustworthy CNC cutting and processing automated equipment structural frame

I. Aluminum Frames: High-Precision Manufacturing and Lightweight Structural Integration Solutions

In modern precision equipment and automation systems, the frame structure, as the foundation platform supporting core components and coping with external loads, directly determines the rigidity, precision, and long-term stability of the entire machine through its rational design and manufacturing precision. Aluminum alloys, with their excellent specific strength, good thermal conductivity, excellent machinability, and diverse connection methods, have become the preferred choice for achieving high-performance, modular, and lightweight frame structures. High-precision CNC machining technology provides a core guarantee for achieving complex geometries, precision interfaces, and highly consistent mass production.

II. Professional and Reliable Structural Frame Manufacturer

We offer a full-process customized aluminum frame service, from conceptual design and finite element analysis to mass production. We are proficient in various high-performance aluminum alloys suitable for structural frames, including the high-performance 6061-T6, the higher-strength 6082-T6, the ultra-high-strength 7075-T7351, and extruded aluminum profiles suitable for large frames.

III. One-Stop Precision Machining, Connection, and Surface Treatment Services

We integrate a complete aluminum frame manufacturing process chain: from precision blanking of aluminum sheets, extruded profiles, or forgings, to high-precision milling on CNC multi-axis machining centers, completing the precision machining of all mounting surfaces, positioning holes, threaded holes, grooves, and weight-reducing structures of integral or modular frames; followed by professional deburring, chamfering, and necessary stress relief treatments; finally, we provide comprehensive surface treatments including anodizing, conductive oxidation, sandblasting, and spraying to meet corrosion resistance, appearance, insulation, or grounding requirements. For the stringent requirements of aluminum frames regarding flatness, parallelism, perpendicularity, hole accuracy, and overall geometric tolerances, we employ large gantry machining centers, specialized fixtures, and online measurement technology to ensure product assembly accuracy and structural integrity.

IV. Advanced Manufacturing System Ensures Large-Scale Structures

We are equipped with large gantry machining centers, multi-axis vertical/horizontal machining centers, and automated surface treatment production lines, forming a highly efficient manufacturing capability to handle everything from small precision frames to large, complex load-bearing structures. Facing the characteristics of large frame dimensions, high precision requirements, and diverse, small-batch production, we ensure high quality and on-time delivery from design verification to batch orders through scientific process planning, modular design, digital production management, and full-process quality traceability.

V. Comprehensive Quality Assurance System Ensures Strict Structural Reliability

We have established a comprehensive quality assurance system that runs through design review, first-article inspection, and batch sampling. Our testing center is equipped with a large coordinate measuring machine, laser tracker, level, roughness tester, and material performance testing equipment. Every aluminum frame undergoes rigorous three-dimensional dimensional and geometric tolerance testing, verification of key mating interfaces, surface treatment quality assessment, and static stiffness testing under simulated working conditions to ensure that the product meets the design expectations for structural strength, precision, and long-term reliability.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don’t have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
