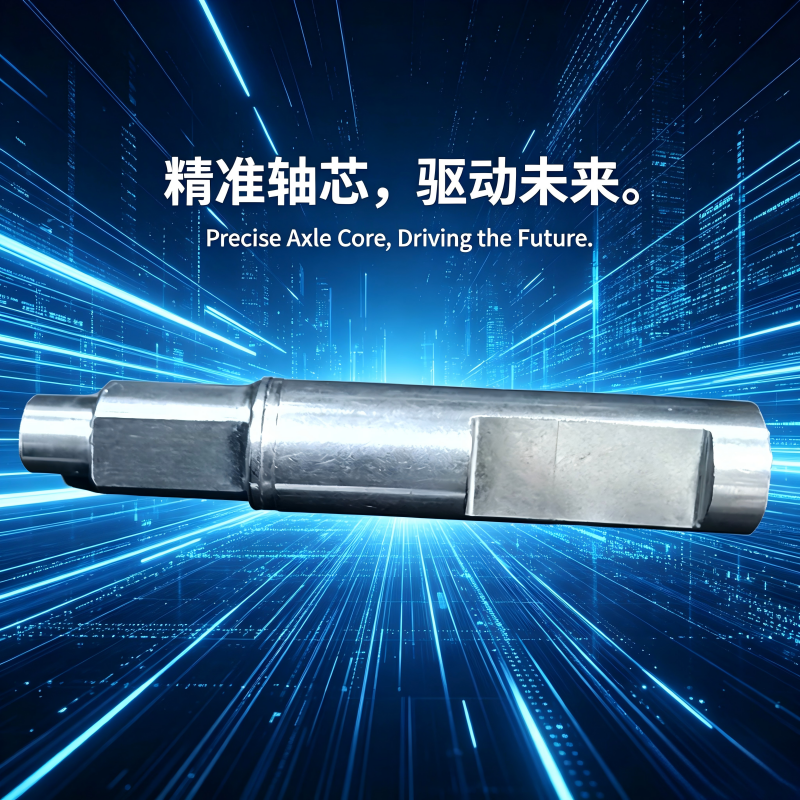

CNC Precision Machining of Motor Shafts: A High-Precision Manufacturing Solution for Core Components of Motor Transmissions

As the core of a motor’s rotary transmission, the motor shaft’s dimensional accuracy, coaxiality, surface finish, and dynamic balance directly determine the motor’s operational stability, noise level, temperature rise, and service life. CNC machining offers advantages such as high repeatability, multi-process machining in a single setup, and stable batch production.

I. Core Advantages of CNC Machining of Motor Shafts

Ultra-High Precision Control

Utilizing a CNC lathe, milling-turning machine, and cylindrical grinder in a coordinated machining process, it can achieve an outer diameter tolerance of ±0.003mm, coaxiality ≤0.005mm, roundness ≤0.001mm, and surface roughness Ra 0.4–1.6μm, meeting the stringent assembly requirements of high-speed motors and servo motors.

Multiple Processes Completed in a Single Setup

Milling-turning machines can complete external turning, end facing, step machining, grooving, threading, keyway machining, drilling, and milling in a single setup, avoiding cumulative errors from multiple setups and improving consistency and yield.

Suitable for Complex Structure Customization

Can process stepped shafts, eccentric shafts, slender shafts, hollow shafts, and shafts with keyways/splines/threads, meeting the diverse structural needs of non-standard motors, geared motors, stepper motors, and brushless motors.

Stable Mass Production and Rapid Prototyping

Supports flexible production from samples and small batches to large-scale production. The processing path is programmed, allowing for fast changeovers, high efficiency, and stable delivery times, meeting the rapid prototyping and batch delivery needs of export customers.

CNC Precision Machining of Motor Shafts: A High-Precision Manufacturing Solution for Core Components of Motor Transmissions

II. Commonly Used Materials and Performance Selection

45# Steel / S45C: General-purpose, moderate strength, easy to cut, high cost-effectiveness, used in motor shafts for household appliances and power tools.

40Cr/42CrMo: Alloy structural steel, high strength, good toughness, and wear resistance after quenching and tempering, used in automotive motors and industrial servo motor shafts.

Stainless Steel 303/304: Corrosion resistant and rust-proof, used in precision instruments and outdoor motor shafts.

Aluminum Alloy 6061/7075: Lightweight, excellent heat dissipation, used in micro motors, fan motors, and low-load, high-speed shafts.

III. Standard CNC Machining Process

Incoming Material Inspection: Verification of straightness, diameter, and material report for round steel.

CNC Rough Turning: Removal of excess material, shaping the basic form.

Temperature/Heat Treatment (as needed): Improves strength, hardness, and wear resistance.

Finish Turning/Semi-Finish Turning: Controls dimensions and coaxiality, allowing for grinding allowance.

Keyway/Spline/Thread Machining: CNC milling or power tool holder machining.

Precision Grinding: Ensures bearing seat dimensions, roundness, and surface finish.

Dynamic Balancing: Mandatory for high-speed shafts, reducing vibration and noise.

Surface Treatment: Zinc plating, nickel plating, blackening, anodizing, phosphating, etc.

Full-Dimensional Inspection: Full inspection using projector, roughness tester, hardness tester, and coaxiality tester before shipment.

IV. Key Quality Control Points

Coaxiality and Radial Runout: Directly affects motor vibration and noise; critical shaft positions must be strictly controlled to ≤0.005mm.

Surface Roughness:Bearing positions and oil seal positions require Ra≤0.8μm to reduce friction and extend service life.

Dynamic Balance Grade: High-speed motors achieve G2.5 grade to ensure smooth high-speed rotation.

Dimensional Consistency:Mass production Cpk≥1.33 to meet automated assembly requirements.

V. Main Application Areas

New Energy Vehicles: Drive motors, air conditioning motors, wiper motors, water pump motor shafts.

Industrial Automation:Servo motors, stepper motors, reducers, robot joint shafts.

Home Appliances & 3C Products:Fans, printers, micro motor shafts.

VI. Our Customization Service Advantages

20 years of CNC shaft machining experience; professionally producing various motor shafts, drive shafts, and worm gear shafts.

Equipped with 46/36 CNC lathes, milling-turning centers, cylindrical grinders, and dynamic balancing machines, enabling integrated turning, milling, grinding, and balancing machining.

Customization based on drawings/samples is supported. DFM (Design for Manufacturability) analysis is provided to optimize structure and reduce costs.

Strict ISO quality control is implemented. Full-size inspection reports are included with shipments, meeting export standards to Europe and America.

One-stop surface treatment services: zinc plating, nickel plating, chromium plating, blackening, oxidation, phosphating, etc.

Fast prototyping (3-7 days), stable batch delivery times, supporting both small and large batch orders.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don’t have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
